无梭心底线绕线机

ZS-1020无梭心底线绕线机

ZS-1020无梭心底线绕线机

产品详细

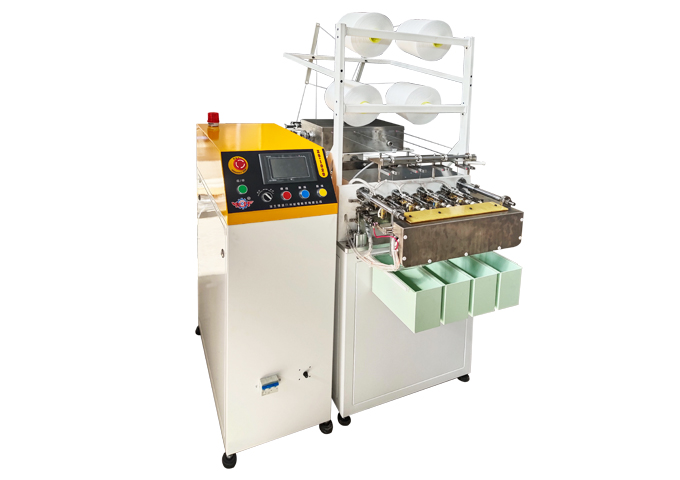

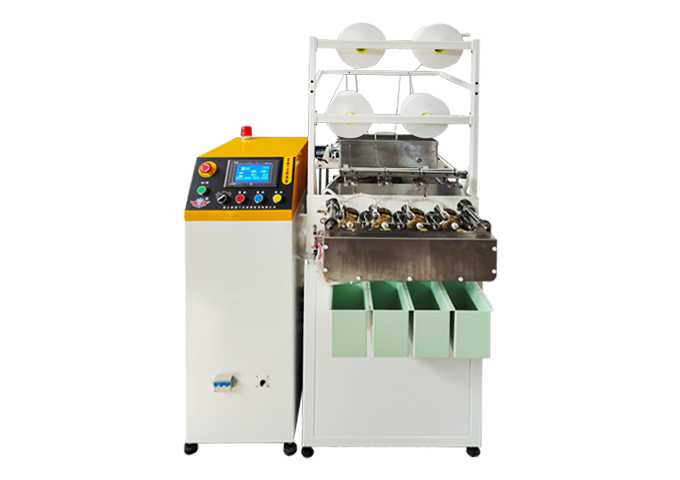

ZS-1020智能款圆形无梭心底线绕线机

ZS-1020 Intelligent round non- spindle core thread winding machine

技术配备及优点:Technology and advantages:

1, ZS-1020智能款圆形无梭心底线绕线机是本公司自主研发的最新产品。本机具有成型好、效率高、操作简便、运行稳定、维修方便、安全可靠等优点。

ZS-1020 The intelligent round bobbin thread winding machine is the latest product independently developed by our company. It has the advantages of good molding, high efficiency, simple operation, stable operation, convenient maintenance, safety and reliability.

2,本机适合各种材质的纱线。

This machine is suitable for yarns of various materials.

3,从绕线、成型、剪线、退线都采用伺服电机、机械手臂自动完成,一次性成型,无需二次加热定型,智能化设计真正解放了人力,一个工人可以看20-30台设备。

From winding, forming, cutting and withdrawing, servo motor and mechanical arm are used to automatically complete, one-time molding, no need for secondary heating and shaping, intelligent design really liberates manpower, and a worker can see 20-30 sets of equipment.

4,本机运行过程中采用的胶或者蜡,都是绿色环保型产品,因为无梭心底线不用梭心,所以本产品是真正的环保型产品,也是传统有芯底线绕线机的换代产品。

The glue or wax used in the running process of this machine are all green and environmental protection products. Because there is no spindle core in the bottom line, so this product is a real environmental protection product, and also a replacement product of the traditional core bobbin winding machine.

5,本机能够实现运行、停止、点动、回位、断线报警及停车等多种功能,有效防止了资源的浪费。

2. This product adopts a variety of relays, which can realize the functions of operation, stop, inching, return, line break alarm and stop, and effectively prevent the waste of resources.

6,机器注油部分全部采用密封铸铁齿轮箱封闭,机器更耐用,不用注油,工作环境更干净。

 The oil filling part of the machine is sealed by sealed cast iron gear box, which makes the machine more durable, does not need oiling, and the working environment is cleaner.



主要技术参数:

Technical Parameters

(1)主轴绕线轴转数为1000-1800转/分。

(1)Winding speed: 1000-1800rmp/min.

(2)线穗形状为圆形。

(2)Bobbin shape: round.

(3)两个单相伺服电机:220V、750W。

(4)Three-phase: 220V,750W

(5)主机外形尺寸:1000MM*1000MM*1600MM

 (5)L×W×H: 1000mm×1000mm×1600mm

(6)净重:350kg;毛重:400kg

 (6)Net weight: 350kg; Gross weight:400kg.
