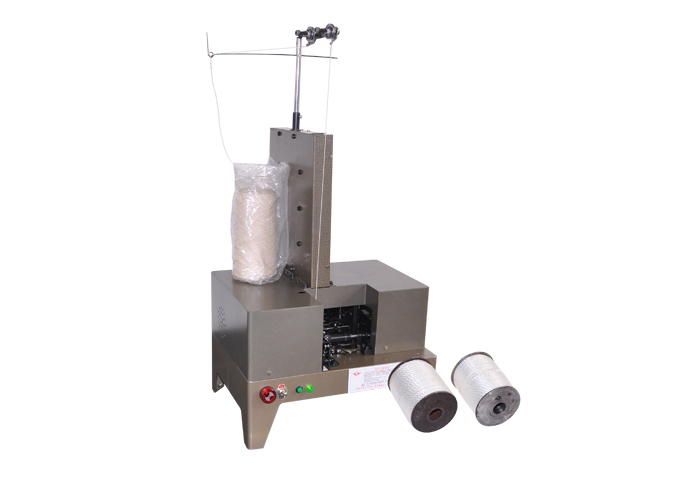

ZS-6全自动底线绕线机产品介绍
欢迎您使用ZS-6系列全自动底线绕线机。该系列机器是专为厚料缝纫机配套的自动缠绕底线的专用设备。具有操作简单、不卡梭芯、不伤梭芯、不易断线、降低成本、高效稳定等优点，一台ZS-6全自动绕线机所绕梭芯可供20台厚料缝纫机使用。
ZS-6A型绕线机配套摆梭梭芯，所绕梭芯尺寸为：梭芯平面直径为：23MM,高度为：26MM
ZS-6B型绕线机配套摆梭梭芯，所绕梭芯尺寸为：梭芯平面直径为：28MM,高度为：26MM
ZS-6C型绕线机配套旋梭梭芯，所绕梭芯尺寸为：梭芯平面直径为：35MM,高度为：15MM
其他尺寸可定制
Welcome to use ZS-6 series automatic bobbin winding machine. This series of machines is a special equipment for automatic winding of bobbin thread for thick sewing machines. It has the advantages of simple operation, no sticking, no damage to the core, no easy thread breaking, low cost, high efficiency and stability. The bobbin wound by one zs-6 automatic winding machine can be used for 20 thick sewing machines.
ZS-6A winder is equipped with swing shuttle core. The size of bobbin is: the plane diameter of shuttle core is 23mm, and the height is 26mm
ZS-6Bwinding machine is equipped with swing shuttle core. The size of bobbin is: the plane diameter of shuttle core is 28mm, and the height is 26mm
ZS-6C winding machine is equipped with a revolving shuttle core. The size of the core is: the plane diameter of the shuttle core is 35mm, and the height is 15mm
Other sizes can be customized
使用说明：
本机器操作简单，在使用前请仔细阅读说明书，在完全了解本机器的性能和操作程序的前提下，正确使用本机器。
This machine is easy to operate. Please read the manual carefully before use, and use the machine correctly on the premise of fully understanding the performance and operation procedures of the machine.
1、安装注意事项本机电源为AC220V、50HZ，功率约为40W。
1. Installation precautions: the power supply of this machine is AC220 V, 50 Hz, and the power is about 40 W.
2,注意：ZS-6自动底线绕线机所有开关、线路均有220V电压，在断电之前绝不能拆装机器，机身必须接地。
2. Attention: all switches and lines of zs-6 automatic bobbin winding machine have voltage of 220 v. the machine must not be disassembled and disassembled before the power is cut off, and the body must be grounded.
3,ZS-6自动底线绕线机不可使用不同规格的梭芯（每次只能放入同种规格的梭芯，如混杂放入、机器可能出现故障）。
3. Zs-6 automatic bobbin winding machine can not use different specifications of bobbin (only the same specification of bobbin can be put in each time, such as mixed loading, machine failure may occur).
4,放入落料盘中梭芯的数量80只，请注意不要超出设定量，不然会出现故障。
4. There are 80 shuttle cores put into the blanking tray. Please pay attention not to exceed the set value, otherwise there will be a fault.
5,必须使用不变形的合格梭芯，否则底线不能绕在梭芯上。
5. The qualified bobbin without deformation must be used, otherwise the bobbin cannot be wound on the bobbin.
6,报警红灯亮表示：盘中的梭芯用完，或线已用完，这时机器停止运转。只需加入梭芯，或换上新线机器可恢复正常工作。
6. When the alarm red light is on, it means that the shuttle core in the disc is used up or the thread has been used up, and then the machine stops running. The machine can return to normal operation by adding bobbin or replacing with new thread.
7,梭芯绕线量的多少可调节压线簧片、螺丝，使簧片高低来完成绕线量的多少。理想的绕线量是所用梭芯的80%为好。
7. The amount of bobbin winding can be adjusted by adjusting the spring and screw to make the spring high and low to complete the winding amount. The ideal winding amount is 80% of the bobbin used.
技术参数：Technical parameters:
外型尺寸400*300*300毫米 重量21公斤 绕线转数:1350转/分
weight :21 kg winding speed: 1350 rpm
电源: 200V 、50HZ 功率约40W
Power supply: 200V, 50Hz, power about 40W
