ZS-1060智能款圆形无梭心牙线绕线机

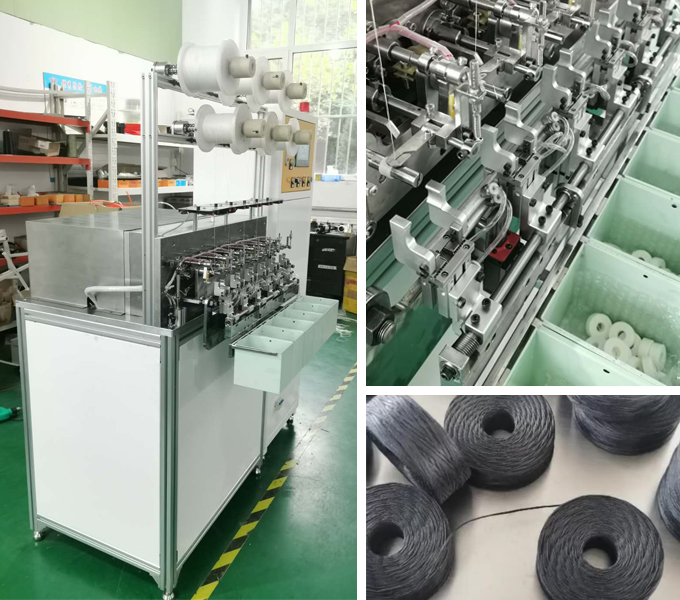

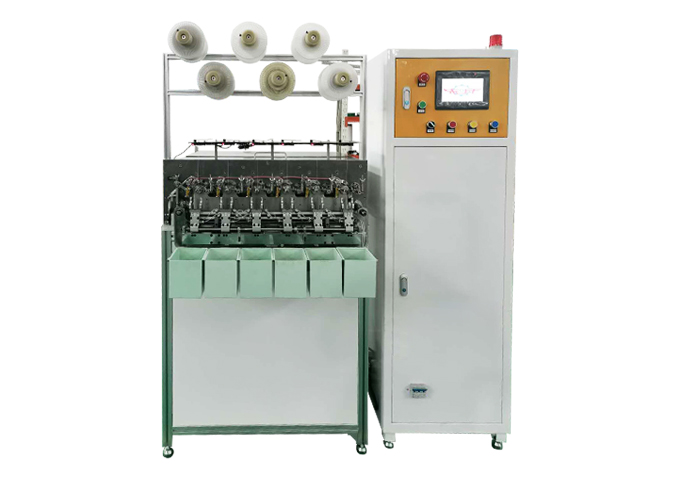

ZS-1060 Intelligent round non- spindle core thread winding machine
ZS-1060智能款圆形无梭心牙线绕线机是本公司自主研发的最新产品。本机适合各种材质的纱线。具有成型好、效率高、操作简便、运行稳定、维修方便、安全可靠等优点。是传统有芯牙线绕线机的换代产品。从绕线、成型、剪线、退线都采用伺服电机、机械手臂自动完成，智能化设备真正解放了人力，一个工人可以看20-30台设备。机器注油部分全部采用密封铸铁齿轮箱封闭，让工作环境和工作状态可以达到口腔医疗标准。
ZS-1060 The intelligent round non spindle core thread winding machine is the latest product independently developed by our company. This machine is suitable for yarns of various materials. It has the advantages of good molding, high efficiency, simple operation, stable operation, convenient maintenance, safety and reliability. It is a new generation of traditional cored dental floss winding machine. From winding, forming, cutting and withdrawing, servo motor and mechanical arm are used for automatic completion. Intelligent equipment really liberates manpower, and a worker can see 20-30 sets of equipment. The oil filling part of the machine is sealed by sealed cast iron gear box, so that the working environment and working state can meet the oral medical standards.
技术配备及优点：Technology and advantages:
1.突破性地采用一台机器六个锭的设计，有效的提高了生产效率，从绕线、成型、剪线、退线都采用伺服电机、机械手臂自动完成，智能化设备真正解放了人力，一个工人可以看20-30台设备。给企业节省了75%生产成本，为企业不断地提高赢利能力。
1. The breakthrough design of six spindles for one machine has effectively improved the production efficiency. Servo motor and mechanical arm are used to automatically complete the winding, forming, cutting and withdrawing of wires. The intelligent equipment really liberates manpower, and a worker can see 20-30 sets of equipment. It can save 75% of the production cost and improve the profitability of the enterprise.
2.本机能够实现运行、停止、点动、回位、断线报警及停车等多种功能，有效防止了资源的浪费。
2. This product adopts a variety of relays, which can realize the functions of operation, stop, inching, return, line break alarm and stop, and effectively prevent the waste of resources.
3.本机采取了紧凑型模式，使其体积小、重量轻、移位方便，有效节省了占地面积。
3. This machine adopts the compact mode, which makes it small in size, light in weight, convenient in shifting, and effectively saves the floor space.
4.本机运转的轴安装了高速轴承，延长了使用寿命。
4. The running shaft of the machine is installed with high-speed bearing, which prolongs the service life.
主要技术参数：
Technical Parameters
(1)主轴绕线轴转数为1000-1500转/分。
(1)Winding speed: 1000-1500rmp/min.
(2)线穗形状为圆形。
(2)Bobbin shape: round.
(3)两个单相伺服电机：220V、750W。
(4)Three-phase: 220V,750W
(5)主机外形尺寸:1300MM*600MM*1600MM
(5)L×W×H: 560mm×830mm×1250mm
(6)净重：200kg；毛重：225kg
(6)Net weight: 200kg; Gross weight:225kg.
